RFR-RAIN-4-SMART-ADV

Description

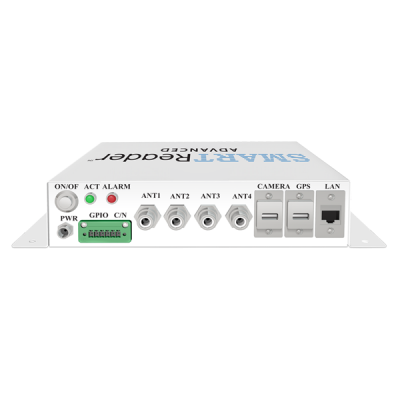

The RFRain Advanced Smart Reader (RFR-RAIN-4-SMART-ADV) is a 4-port reader, with a GPIO and 2 USB slots. Just like the Smart Reader it covers a tag read distance that is over 80 feet with 9 dBiL antenna. In addition, the advanced reader has a built-in 12,000 mAh lithium-ion battery that enables mobile asset tracking for applications such as forklifts, trucks, and schoolbuses. Access and control the reader from any browser using the built-in UI. Access the reader via Ethernet, WIFI or cellular connection. The RFRain Advanced Reader connects seamlessly to the cloud via the Zone Manager Enterprise software.
All sales are backed with 30 days money back guarantee. We stand by our products 100%.

Reviews

There are no reviews yet.

Be the first to review “RFR-RAIN-4-SMART-ADV”

Your email address will not be published. Required fields are marked *

Zone Manager Software
The Zone Manager Software comes pre-installed with the Smart Reader and enables full interoperability of each Smart Reader and provides a complete set of features to help you monitor and track 1000’s of assets in a few seconds . The reader license is sold per Smart Reader and is charged on a yearly basis. Includes free software upgrades. 1-year hardware warranty included.
Learn more
RFRain Web Services
The RFRain Web Services (RWS) is a user-centric software application and make it really easy to monitor and organize your assets and data in the cloud or on-premise. The RWS provides the location of yours assets in real-time. In addition, the RWS allows you to store , search receive and send alerts, and add custom information for each asset, In many instances, running in AWS or Azure using JSON post alert push notifications. Finally, the RWS can be used as a standalone application for companies, that have limited IT resources.
Learn more
Summary of Datasheet
The RFR-RAIN-4-SMART-ADV is an advanced RFID reader featuring USB, Wi-Fi, Ethernet, PoE+, access point, and optional cellular connectivity. It runs the pre-installed Zone Manager software with RFRain REST API support and operates in multiple modes including Server Mode, Enhanced Server Mode, and Write Mode. Key capabilities include RSSI, brown-out recovery, live upgrades, and standalone browser-based configuration. It supports EPC-global UHF Class 1 Gen 2 (ISO 18000-6C) tags with anti-collision and anti-jamming, using four RP-TNC antenna ports and adjustable RF power (10–30 dBm). Powered by the Indy R2000 processor with 1 GB RAM and up to 64 GB flash, it delivers up to 700 tags/sec read speed and 80 ft (24 m) range. The unit offers GPIO, dual USB 2.0, and RJ45 interfaces, with a rugged sheet metal enclosure and wide operating temperature range. Certified for multiple global regions, optional features include a 24,000 mAh battery, GPS, camera, access control, audible alerts, and isolated GPIO ports. Learn More
Purchasing Information
The purchase of the RFRain Web Services (RWS) includes Advanced Database Support. RFR-EMAIL-TXT-PUSH is required with the purchase of the Access Control feature. Each Reader comes with a built-in Zone Manager UI with Rest API support.

RFR-RAIN-4-SMART-ADV

Product Code: RFR-RAIN-4-SMART-ADV

Starting at

$2,143.05

On Premise / Cloud Data Access
Additional Options ( Optional )
Product total
Options total
Grand total
